Aluminum truss

  • PS450 spigot truss 450X450mm

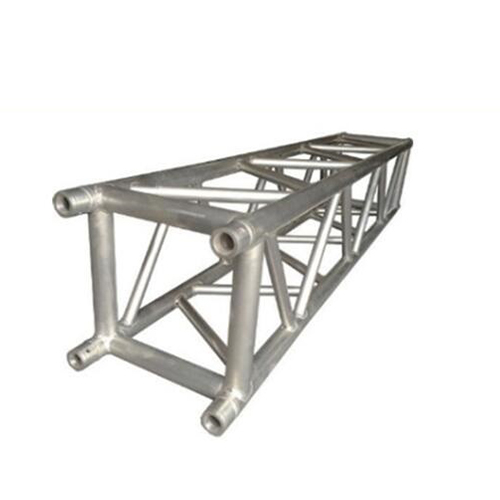

PS450 spigot truss 450X450mm

PS450 spigot truss 450X450mm

  • Item : PS450
  • Material: Aluminum 6082
  • Span:22m
  • Type: pin type
  • Product description: spigot truss 450X450mm,pin truss
  • INQUIRY
Brand:
Pro Group
Model:
PS450
Size:
450x450mm
Description:
450x450mm square spigot truss
Material:
6082 T6 aluminum alloy
Color:

Silver , customized color like black  ,blue, red color available

Main tube:
50x3mm
Support tube:
30x2mm
Length available

0.5m ,1m ,1.5m,2m ,2.5m,3m ,3.5m ,4m

Span &SLW:
45kgs / *18m
Applications

kinds of concert,  project, outdoor and indoor performance and shows, Exhibitions etc.


PS450 Allowable Loading
6082-T6   50*3mm tube as main tube  30*2mm as brace tube
Span LOAD ALL Uniformly distributed load(UDL) Centre point load(CPL) 2 poits 3 poits 4 poits DEFLECTION
m ( ft ) kg kg/m kg kg kg kg (mm)
4 13.1 1070 267 536 4002 273 222 3
5 16.4 1072 214 536 402 273 222 4
6 19.7 1072 179 536 402 273 222 7
7 23 1065 152 535 401 273 222 9
8 26.2 1070 134 535 401 273 222 18
9 29.5 1068 119 535 401 273 222 22
10 32.8 1060 106 535 401 273 222 40
11 36 1065 97 535 401 273 222 54
12 39.3 1051 88 530 398 271 220 73
13 42.6 974 75 491 368 251 204 89
14 45.9 904 65 458 342 233 190 107
15 49.2 847 56 429 320 219 178 123
16 52.5 793 50 398 299 202 159 140
18 59.1 768 43 371 277 175 133 158
